| Place of Origin | China |
| Brand Name | HEIU |
| Certification | TUV,CE,RoHS |
| Model Number | CCS Combo Plug |

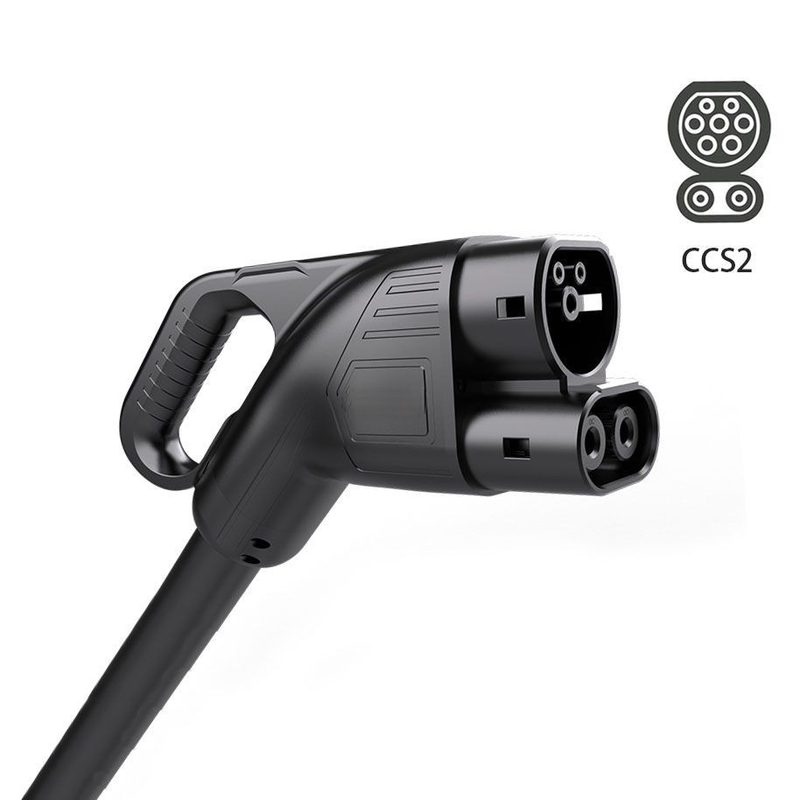

125A 1000V IEC 62196 CCS 2 EV Charger DC Fast Charging With CCS Type 2 Plug
Product Description:
The Combined Charging System (CCS) is a standard for charging electric vehicles, which uses the Combo 1 and Combo 2 connectors to provide power at up to 350 kilowatts. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging.
Product Specification:
| Plug type | CCS Combo 2 |
| Rated current | 60A / 125A/ 150A /200A |
| Plug shell material | Thermoplastic (flame retardant grade: UL94-0) |
| Operational temperature | -30 °C to +50 °C |
| Vandalism-proof | No |
| UV resistant | Yes |
| Certificate | CE, TUV |
| Additional features | Over-voltage, under-voltage, leakage current and lightning protection |
| Cable length | 5m or customized |
| Terminal material | Copper alloy, silver plating |
| Terminal temperature rise | ＜50k |
| Withstand voltage | 3200V |
| Contact resistance | ≤0.5mΩ |
| Mechanical life | ＞10000 times of off-load plug in/out |
| Coupled insertion force | Between 45N and 100N |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q3. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Contact Us at Any Time
